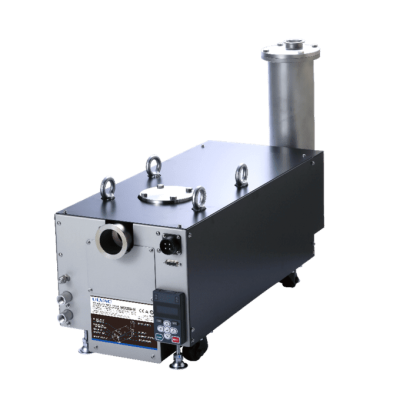

“Model:MS” is a vacuum pump which is categorized as screw type dry vacuum pump.
Corrosion resistance and powder exhaust are improved as process resistance model based on traditional “LS Model”.
This model is designed for the process of using corrosion gas and powder exhausting.
＊MS1200A is available separately with additional control board and sensors.Please contact us for details.
| Model | MS120A | MS600A | MS1200A | |
| Max.pumping speed *1 | m3/h | 115 | 560 | 980 |
| Ultimate pressure | Pa | ≦0.6 | ≦0.1 | |
| Power supply | 200V Class：3Phase, 50/60Hz, AC200-240V±10% or 400V Class：3Phase, 50/60Hz, AC380-480V±10% | |||
| Power consumption *2 | kW | 2.4 | 3.1 | 3.1 |
| Cooling water flow rate | L/min | >4.0 | ||
| Purge gas flow rate *1 | SLM | 0 – 50 | ||
| Max.water vapor tolerance *1*3 | kg/h | 1.5 | ||
| Noise *2 | dB(A) | 61 | 62 | 64 |
| Inlet port | KF50(Horizontal) / VG50(Vertical) | ISO-F-80 | ISO-F-100 | |
| Outlet port | KF40 | |||
| Weight *4 | kg | 139 | 241 | 264 |
| Applicable standard | CE, cTUVus | |||
| Standard accessory | Quick manual, Power connector, Waterproof cable clamp, Remote connector, Guard for power connector, Silencer | |||
| Pump head option | Power supply：200V Class or 400V Class Material of seal：FKM or FFKM |
|||
| External option | Packege Exhaust port, Earthquake-proof Bracket, LR compatible Unit(Inlet, Remote), Purge gas valve | |||
*1：reference value
*2：At ultimate pressure (reference only)
*3：Max.water vapor tolerance is a value hen purge gas is used.
*4：Including a silencer
