MODEL: GV200
Oil Rotary Vacuum Pump
Double-stage exhaust system / Including backflow prevention mechanism / Gas ballast mechanism / Built-in thermal protector / ON/OFF switch / Input terminal (cord not included)
MODEL: GV135/GV200
User advantages
- Quiet operation suitable for offices and laboratories in quiet environments.
- No need to handle or clean oil leaks from the vacuum pump.
- Prevents oil backflow into equipment, ensuring contamination-free operation.
User advantages
|
Model |
Unit |
GV135 |
GV200 |
||
|
50Hz |
60Hz |
50Hz |
60Hz |
||
|
Actual Pumping Speed |
L/min |
135 |
162 |
200 |
240 |
|
Ultimate Pressure*¹ (G.V.Close) |
Pa |
5.0 x 10‐¹ |
|||
|
Ultimate Pressure (G.V. open) |
Pa |
5 |
|||
|
Motor Output |
W |
550 |
|||
|
Recommended oil |
|
SMR-100 |
|||
|
Oil capacity |
mL |
1,000 |
|||
|
Weight |
kg |
28 |
31 |
||
|
Inlet port diameter |
mm |
KF-25 |
|||
|
Ambient temperature |
℃ |
7 - 40 |
|||
|
Overall dimensions |
mm |
166(W) x 490(L) x 241.5(H) |
|||
|
RoHS applied |
|
✓ |
|||
*1 The ultimate pressure is measured by a Pirani gauge. For pumps with an ultimate pressure of 1.3 Pa or lower, measurements taken with a McLeod gauge may show values approximately one order of magnitude lower.
* The power plug and cord are not included.
Power Supply/Voltage
| Voltage | Certificate |
| AC1φ 100-120 / 200-240V | TUV, cTUVus, ATEX(category 3) |
Remarks
1. Pump oil deteriorates during operation, which can lead to reduced performance. Please regularly inspect the oil level and contamination, and refill or replace the oil as needed.
2. The backflow prevention valve mechanism prevents pump oil from flowing back into the vacuum chamber during emergencies such as power outages.
When the pump will be stopped for an extended period, please return the vacuum chamber to atmospheric pressure.
3. Oil mist may be generated from the exhaust port during operation, especially near atmospheric pressure.
4. Continuous operation at a high intake pressure of 5,000Pa or above is not suitable.
5. Operating the pump with the exhaust port blocked or with devices that obstruct gas flow on the exhaust side may cause rupture.
6. The motor's overload protection device is of the automatic reset type.
7. If the overload protection device activates during pump operation, the pump will automatically restart once the motor winding temperature decreases.
To prevent accidents, immediately unplug the power cord if the overload protection device activates.

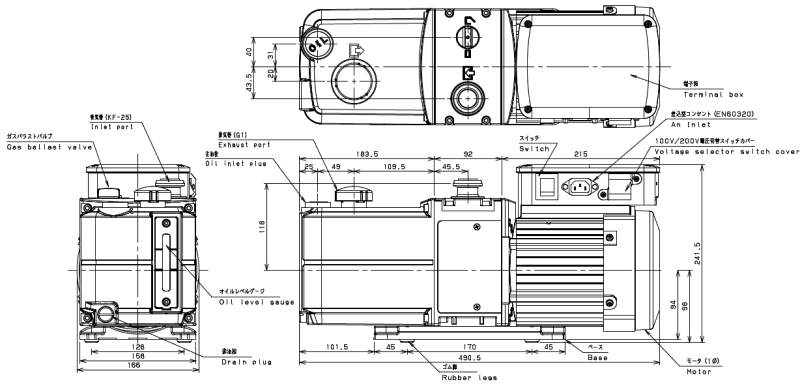

Outline Drawing

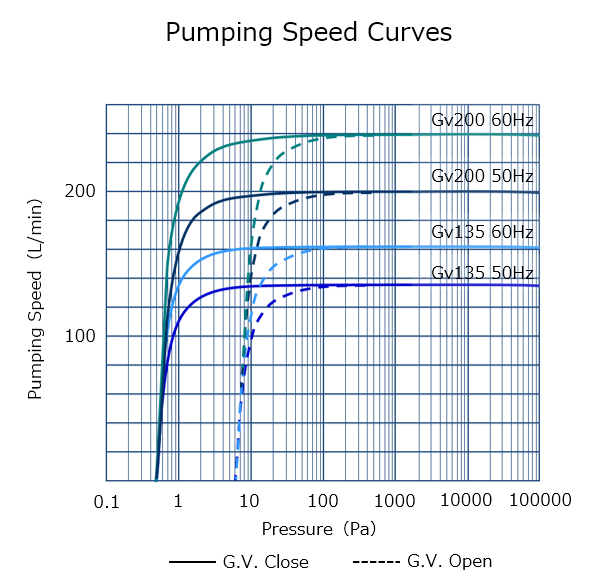

Pumping Speed Curves
