MODEL: PBL

MODEL: PBL

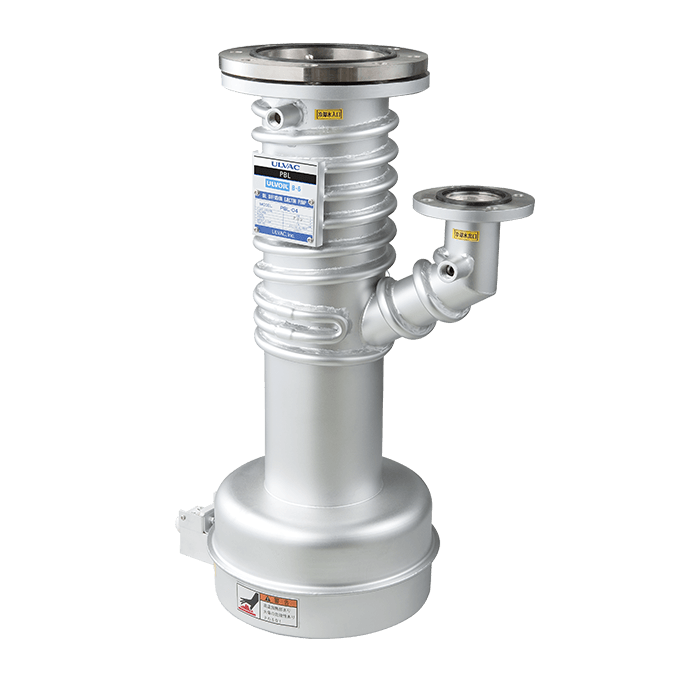

Oil Diffusion Pump

ULVAC's oil diffusion ejector pumps are generally used in industrial processes to provide high pumping speed. They are particularly well-suited for use in metallurgy, plastic coating and chemical manufacturing, where large quantities of gas have to be pumped away as quickly as possible.


Features

  • These pumps use no oil in the pumping chamber resulting in stable performance even when evacuating water vapor or solvent vapors.
  • These pumps have maximum pumping speed at 10-1Pa level.
  • Stainless steel is used for the pump bodies of Model PBL-02 and PBL-04 in order to minimize outgassing of the pumps,
  • eliminate corrosion and to ensure a long operating lifetime of the pump.The “Model:PBL” are particularly well-suited for the use as an intermediate pump between an oil rotary pump, a mechanical booster pump and oil diffusion pump.
  • The larger capacity pumps (PBL-06 - PBL-20) have the heaters directly immersed in the operating fluid for maximum thermal efficiency.

Specifications

Model PBL-02 PBL-04 PBL-06 PBL-10 PBL-14 PBL-20
Pumping speed 80L/sec 200L/sec 500L/sec 1800L/sec 4000L/sec 7000L/sec
Ultimate pressure *1 2.7×10-2 Pa
Maxium forepressure 40 Pa
Heating up time 20 min 30 min 30 min 40 min 50 min 60 min
Oil ULVOIL B-6
Oil capacity 0.1 L 0.6 L 7.5 L 18 L 36 L 90 L
Cooling water temperature 19～25℃
Water connections Rc 1/8×1 Rc 1/4×1 Rc 3/8×2 Rc 1/2×2 Rc 1/2×3 Rc 1/2×3
Rc 3/8×1
Water capacity 1.5 L/min 5 L/min 8 L/min 12 L/min 18 L/min 25 L/min
Voltage 200V / 1φ 200V / 3φ
Pump power 0.44 kW 1.8 kW 4 kW 8 kW 11 kW 18 kW
2kW x 2pc. 4kW x 2pc. 5.5kW x 2pc. 6kW x 3pc.
Heater type cartridge heater coiled element heater sheathed (pipe heater) sheathed (pipe heater) sheathed (pipe heater) sheathed (pipe heater)

Standard backing
pump *2

 VD201/VD30C
PVD-360		 PKS-016
VS1501		 PKS-030
VS2401		 PKS-070
(PMB600D＋PKS-030)
(PMB600D＋VS1501)		 PMB1200D＋PKS-030
PMB1200D＋VS1501		 PMB-040C＋PKS-070
(PMB2400D＋PKS-070)
Dimensions *3 A 100 mm 150 mm 200 mm 300 mm 340 mm 510 mm
B 70 mm 112 mm 152 mm 346 mm 548 mm 422 mm
H 463 mm 524 mm 973 mm 1,321 mm 1,687 mm 2,320 mm
Inlet VG50 VG100 VG150 VG250 VG350 VG500
Outlet 3/4B hose fittings VG40 VG50 VG80 VG100 VG200
Weight 6 Kg 17 Kg 86 Kg 198 Kg 313 Kg 495 Kg
Oil level gage without without dip stick dip stick dip stick dip stick
Themal switch option witout witout witout witout witout witout
Themal switch operating
temperature		 - - - - - -



Water Cooling Baffle(PFL)

Model BW-02 BW-04B BW-06B BW-10 BW-14 BW-20
Conductance 100 L/sec 940 L/sec 2,200 L/sec 3,130 L/sec 5,000 L/sec 13,000 L/sec
Dimensions
*3		 D φ120 mm φ149 mm φ199 mm φ350 mm φ450 mm φ625 mm
T 16 mm 28 mm 28 mm 44 mm 50 mm 152 mm
t 16 mm 25 mm 25 mm 22 mm 22 mm 24 mm
Water connections Rc 1/8 Rc 1/4 Rc 1/4 Rc 1/4 Rc 3/8 Rc 3/8
Water capacity 1.5 L/min 0.7 L/min 1 L/min 2 L/min 2 L/min 3 L/min
Weight 1 kg 1.3 kg 1.7 kg 7.6 kg 11 kg 22 kg

*1 Ultimate pressure is measured with an ionization vacuum gauge when the cooling water
　temperature is 20 ° C.
*2 The backing pump chooses it for the maximum throughput of the diffusion ejector pump,
*3 Please confirm other dimensions by CAD data placing （ 2D Drawing , 3D Drawing ）
　in the ULVAC,Inc.website.

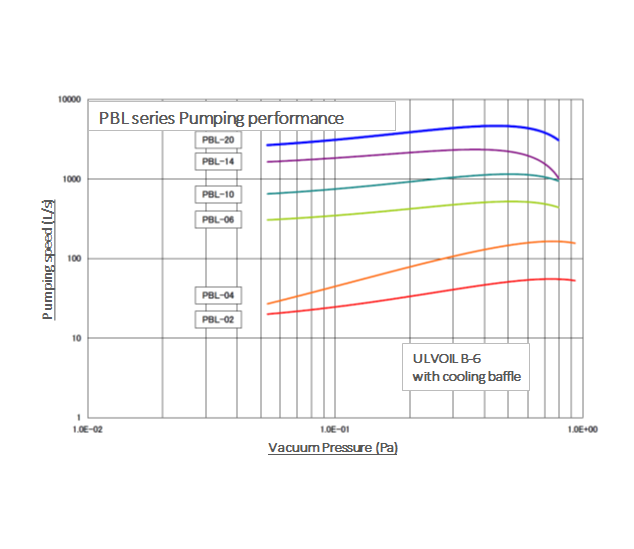

Pumping Speed Curves


Dimension drawing


　

PBL-02

PBL-04

PBL-06

PBL-10

PBL-14

PBL-20

A

463

524

973

1321

1687

2320

B

100

150

200

300

340

510

C

70

112

152

346

548

420
