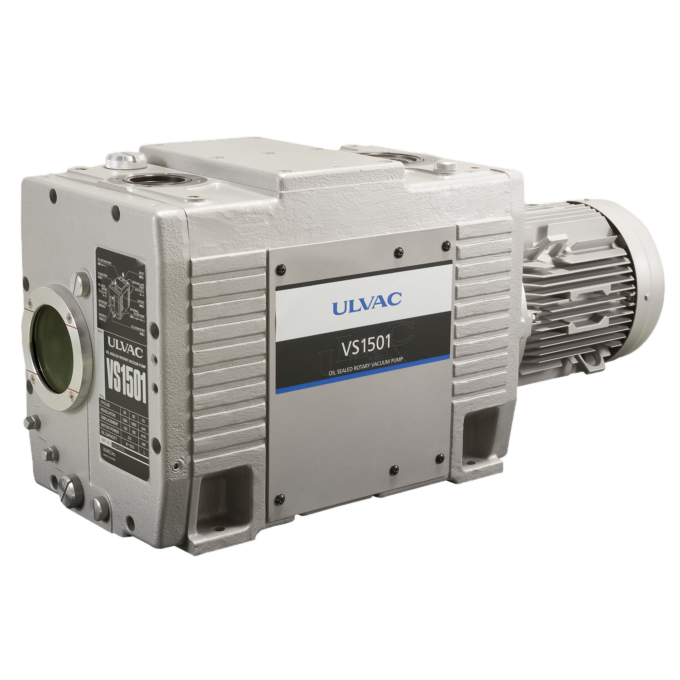

MODEL: VS1501 / VS2401

MODEL: VS1501 / VS2401

Oil Rotary Vacuum Pump

VS1501/VS2401 is classified as a single-stage rotary vane type oil vacuum pump.The water-cooled and forced oil supply system ensures stable pumping performance even under heavy loads.
They are also designed for easy maintenance with a large oil level indicator.


Features

  • Water Cooling and Forced Oil Supply System
    The oil supply to the cylinder is satisfied even under heavy load operation, and more stable exhaust performance can be obtained than with the differential pressure oiling system.
  • Adoption of hydraulic oil anti-suck system
    When the pump is stopped, the backflow of oil from the oil tank to the suction side can be suppressed.
  • Maintenance-friendly design
    A large oil level gauge is used for easy monitoring of the oil condition, and a maintenance cover is provided for cleaning the oil tank and replacing the exhaust valve.

Applications

  • Optical film vapor deposition system
  • Thin film vapor deposition system for reflector
  • Evaporation system for decorative moldings
  • Evaporation Roll Coater systems
  • In-line sputtering systems
  • Vacuum Heat treatment furnace systems
  • Vacuum Freeze-drying system
  • Vacuum Leak testers
  • Space chambers

Specifications

Model VS1501 VS2401
Designed pumping speed 50Hz m3 / hr
(L/min)		 150（2500） 240（4000）
60Hz 180（3000） 288（4800）
Ultimate pressure GP Close Pa ≦ 5.3
GP Open ≦ 80
Power consumption　(at ultimate pressure） 50Hz kW 2.3 2.8
60Hz 2.9 3.6
Motor Model Totally enclosed fan cooled／3 phase induction motor
Capacity kW(Poles） 5.5（4） 7.5（4）
Voltage 50Hz V 200 - 240 / 380 - 415
60Hz 200 - 240 / 380 - 460
Noise level*1　(at ultimate pressure） 50Hz dB 67 73
60Hz 67 73
Oil SMR-200
Oil capacity L 8 - 10.5
Cooling method 水冷
Cooling water Primary pressure MPaG ≦0.5
Differential pressure between inlet and outlet ≧0.1
Cooling water volume L/min ≧4.0 ≧5.0
Cooling water temperature ℃ 5 - 30
Cooling water Δｔ ≦10
Inlet port flange JIS VG80
Outlet port flange JIS VF50
Weight kg 232 271
External dimensions　W×D×H mm 300×941×460 333×1061×460
Overseas safety standards ー

Note ) This specification uses SI measurement unit.
※1　The average sound pressure level has measured and calculated based on ISO 2151.

Pumping Speed Curves

Dimension drawing
