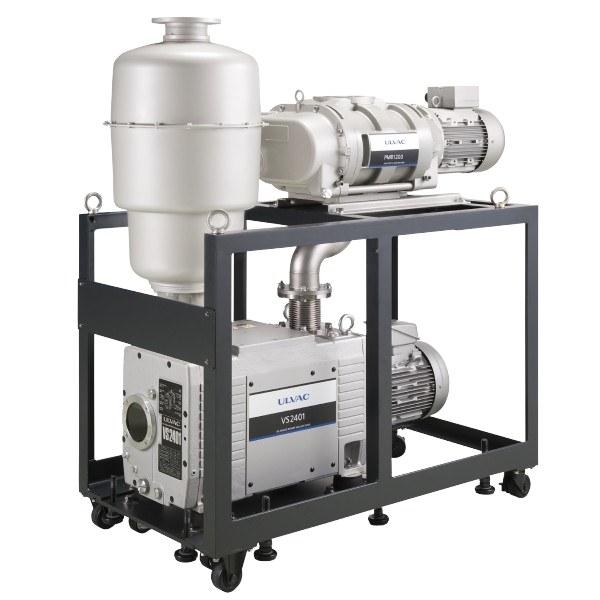

"Model:YMV" is a frame unit for combining a mechanical booster pump and an oil rotary vacuum pump.
4 types of frame units in accordance with the pump exhaust amount have prepared.
It has an independent frame design that emphasizes the pump maintainability, making ideal for production usage.
| Frame Unit *1 | YMV-01A | YMV-03A | YMV-06A | YMV-12A | ||||||
| Bellows, Caster with adjuster | Bellows, Caster with adjuster | |||||||||
| Recommended pump *2 |
Mechanical booster pump |
PMB 100D |
PMB 300D |
PMB 600D |
PMB 600D |
PMB 1200D |
||||
| Oil rotary pump |
VD30 | VD40 | VD60 | VD90 | VS1501 | VS2401 | VS1501 | VS2401 | ||
| Maximum pumping speed |
50Hz | 95m3/h (1,580L/min) |
250m3/h (4,100L/min) |
450m3/h (7,500L/min) |
500m3/h (8,330L/min) |
550m3/h (9,200L/min) |
600m3/h (10,000L/min) |
850m3/h (14,200L/min) |
1,000m3/h (16,700L/min) |
|
| 60Hz | 115 m3/h (1,900 L/min) |
290 m3/h (4,800 L/min) |
520 m3/h (8,670 L/min) |
600 m3/h (10,000 L/min) |
660 m3/h (11,000 L/min) |
720 m3/h (12,000 L/min) |
1,000 m3/h (16,700 L/min) |
1,200 m3/h (20,000 L/min) |
||
| Max. Suction pressure |
50Hz | 8.5 X 103 Pa |
7.0 X 102 Pa |
1.0 X 103 Pa |
1.3 X 103 Pa |
1.5 X 103 Pa |
2.4 X 103 Pa |
1.3 X 103 Pa |
1.7 X 103 Pa |
|
| 60Hz | 4.5 X 103 Pa |
7.0 X 102 Pa |
1.0 X 103 Pa |
1.1 X 103 Pa |
1.3 X 103 Pa |
2.1 X 103 Pa |
1.1 X 103 Pa |
1.7 X 103 Pa |
||
| Ultimate pressure *3 |
4.0 X 10-1 Pa | 6.7 X 10-1 Pa | ||||||||
| Cooling method *4 |
Air cooled |
Air cooled / Water cooled | Water cooled | |||||||
| Cooling water |
Primary side pressure |
- | 0.3 Mpa | 0.3 Mpa | ||||||
| Inlet / outlet differential pressure volume |
- | 0.05 Mpa | 0.1 Mpa | |||||||
| Cooling water capacity |
- | 2.0 ≦ L/min | 4.0≦ L/min |
5.0≦ L/min |
4.0≦ L/min |
5.0≦ L/min |
||||
| Cooling water temperature |
- | 5 - 30 ℃ | 5 - 30 ℃ | |||||||
| Inlet port JIS-B-2290 |
VG50 equivalent ( KF50 or ISO63F (optional) |
VG80 equivalent ( ISO80F or 100F optional ) |
VG80 equivalent ( ISO80F or 100F optional ) |
VG100 equivalent ( ISO100F optional) |
||||||
| Outlet port JIS-B-2290 |
VG40 equivalent ( KF40 optional ) | VG50 equivalent ( KF50 or ISO63F optional ) |
||||||||
| Dimension W X D X H |
500 X 860 X 848 mm |
500 X 860 X 920 mm |
500 X 960 X 1030 mm |
500 X 960 X 1030 mm |
650 X 1200 X 1238 mm |
650 X 1200 X 1238 mm |
650 X 1200 X 1258 mm |
650 X 1200 X 1258 mm |
||
| Weight ( including the recommended pump weight ) |
145 kg | 175 kg | 260 kg | 285 kg | 480 kg | 520 kg | 530 kg | 570 kg | ||

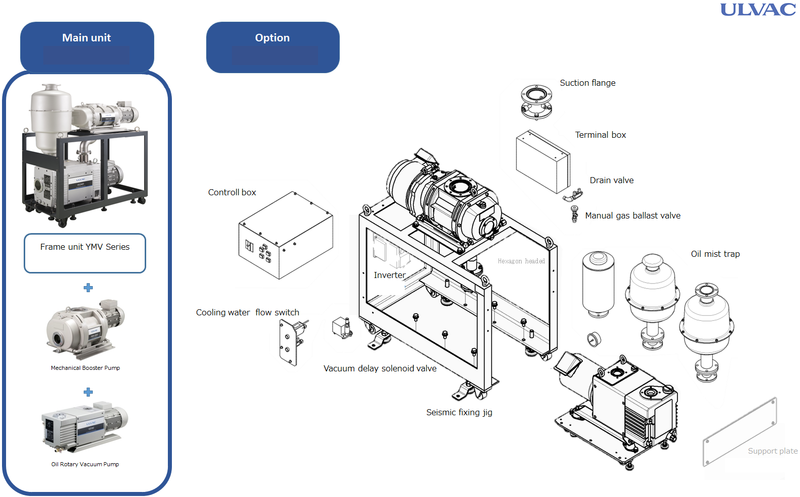

| Option | Atmospheric operation |
For PMB 100D I2 |
For PMB 300D I2 |
For PMB 600D I2 |
For PMB 600D I2 |
For PMB 1200D I2 |
||||
| For PMB 100D I4 |
For PMB 600D I4 |
For PMB 600D I4 |
For PMB 1200D I4 |
For PMB 1200D I4 |
||||||
| Oil mist trap | TM201 / TM401 | TM401 / TM-2 (F) | TM-3 (F) | TM-4 (F) | TM-3 (F) | TM-4 (F) | ||||
| Control box *6 |
For PMB 100D + VD30 |
For PMB 300D + VD40 |
For PMB 600D + VD60 |
For PMB 100D + VD90 |
For PMB 600D + VS1501 |
For PMB 600D + VS2401 |
For PMB 1200D + VS1501 |
For PMB 1200D + VS2401 |
||
| Terminal box | For PMB 100D + VD30 |
FOr PMB 300D + VD40 |
For PMB 600D + VD60 |
FOr PMB 100D + VD90 |
For PMB300D/ PMB600D |
For PMB1200D | ||||
| Suction flange *7 | For PMB100D |
For PMB300D/ PMB600D |
For PMB300D/ PMB600D |
For PMB1200D | ||||||
| Vacuum delay solenoid valve *8 |
Common (select from DC24V, AC200V, AC220V,AC380V, AC400V, AC415V or AC440V) |
Common (select from DC24V, AC200V, AC220V,AC380V, AC400V, AC415V or AC440V) |
||||||||
| Cooling water flow switch *9 |
- | For PMB300D + VD40/PMB600D + VD60/PMB600D + VD90 |
For PMB600D + VS1501 |
For PMB600D + VS2401 |
For PMB 1200D + VS1501 |
For PMB 1200D + VS2401 |
||||
Note)“Model:YMV” is the frame unit for mechanical booster pumps. Purchase the mechanical booster pump and oil rotary pump separately.
Refer to the brochure about the specification of mechanical booster pumps and oil rotary pumps. Options for individual pump are available. ( Select the inverter for atmospheric pressure start operation from options for Model:YMV ).
