Turbo Molucular Pump

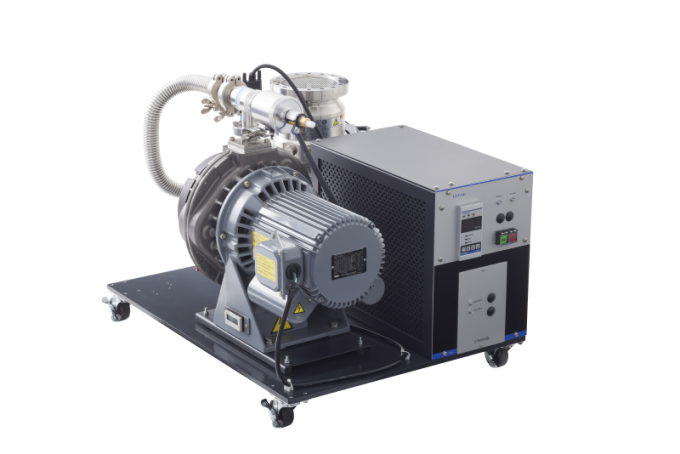

"Model:YTP" version B is a high vacuum pumping system with a ceramic ball bearing turbo molecular pump.Vacuum pumping from atmospheric pressure to high vacuum is possible. ULVAC prepares two types, SA type which allows the automatic pumping by START / STOP switch and M type which is a manual operation. In addition, the back pump can be selected from rotary pump as a standard specification, or dry scroll pump as the other selection.


Features

  • Preparing various models according to the application
    The back pump can be selected from rotary pump as a standard specification, or dry scroll pump as the other selection.
  • Adopting a superior power failure countermeasure function
    A solenoid valve is equipped as standard on the fore valve to prevent reverse flow and failure at power failure.
  • Possible to check the pressure during rough vacuum pumping due to the Pirani vacuum gauge is equipped as a standard parts.
  • Vacuum pumping to the Ultra High Vacuum area is possible
    Designed for easy integration of up to 2 vacuum gauges
    (※ As product specification value)

Application

  • Evacuation system from atmospheric pressure to high vacuum
  • Evacuation system of various experiment and R&D equipments
  • Vacuum substitution of high purity gas
  • Roughing evacuation system of UHV system
  • Evacuation system of analytical equipment

Specifications

Model YTP-
50MB		 YTP-
50SAB		 YTP-
50MB-DRY		 YTP-
50SAB-DRY		 YTP-
300MB		 YTP-
300SAB		 YTP-
300MB-DRY		 YTP-
300SAB-DRY
Inlet port ICF114, VG65, ISO63-K ICF152, VG100, ISO100-K
TMP
Ultimate
pressure
*1,*2		 Before
baking		 10-6Pa 10-6Pa
After
baking		 10-8Pa 10-8Pa
TMP
Pumping
speed *3		 N2 70 L/s 280 L/s
H2 49 L/s 220 L/s
Baking pump Outlet port G3/4 NW16 G1 NW16
Baking
pump
Pumping
speed		 50Hz 50 L/min 90 L/min 200 L/min 250 L/min
60Hz 60 L/min 100 L/min 240 L/min 300 L/min
TMP back pressure
and rough pressure
monitering		 Pirani vacuum gauge（2.7×103 - 10-1Pa）
Fore valve Solenoid valve for rotary pump automatic vent system(Solenoid valve)
Input power source Single phase AC100V（50/60Hz）
Input cable length 5m with 3P outlet
Power capacity 1.2 kVA 0.9 kVA 1.7 kVA 1.6 kVA
Power consumption
during stable operation (kVA)		 0.6 kVA 0.4 kVA 1.0 kVA
Weight 55 kg 57 kg 86 kg 85 kg

*1：Baking is only available with ICF flange type.　
*2：A digit number is expressed.(Display only the digits of power.)
*3：Without a protective net.

Dimension Drawing




Unit：mm



YTP-50MB
YTP-50SAB

YTP-50MB-DRY
YTP-50SAB-DRY

A

580

580

A'

592

592

B

400

450

C

70

70

D

160

160

E1

430

430

E2

412

412








Unit：mm



YTP-300MB
YTP-300SAB

YTP-300MB-DRY
YTP-300SAB-DRY

A

650

650

A'

665

665

B

450

500

B'

492

542

C

100

100

D

100

100

E1

440

440

E2

428

428
