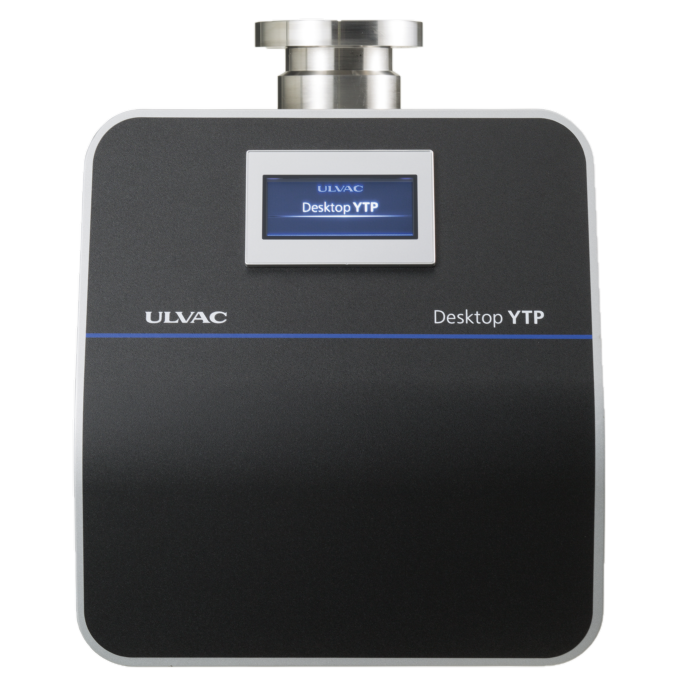

MODEL: YTP70B
Turbo Molucular Pump
This pump has a high compression ratio.
It allows for the miniaturization of auxiliary pumps.
MODEL:YTP70B
Features
- Consideration for use environment on desktop
Enable to reduce running noise and vibration during operation. - Low noise
43dB(A) or less at ultimate pressure. - Compact and sinple design
- Pressure indication
Enable to display the pressure from vacuum gauge( selectable up to 2 gauges from ULVAC “Model:G-TRAN”). Not necessary the display for vacuum gauge. - Applicable standard
CE, cTUVus - User-friendly
Simple operation with easy to read touch panel display
Application
- Evacuation system of various experiment and R&D equipment
- Evacuation system from atmospheric pressure to high vacuum
- General use for high vacuum evacuation system
Specifications
| Model | YTP70B-D | ||
| Ultimate pressure *1 | Pa | 10-6 | |
| Pumping speed *2 |
N2 | L/s | 70 |
| He | L/s | 60 | |
| H2 | L/s | 49 | |
| Backing pump | L/min | 20 | |
| Weight | kg | 17.5 | |
| Noise *3 | dB | 43 | |
| Input power source | Single phase AC 100 - 240V(50/60Hz) | ||
| Power capacity | 300W(50/60Hz) | ||
| Standard accessories | Gasket ,Dust cap ,Protective net ,Jumper pin ,Quick Manual | ||
| External option | AC cable(3m) *4 | ||
| Applicable standard | CE,cTUVus | ||
*1 A digit number is expressed.
*2 Without a protective net.
*3 At ultimate pressure. Measured by ULVAC standard for ICF flange type.
*4 Plug is selectable.
Dimension Drawing
YTP70B-D-AC
YTP70B-D-AK
YTP70B-D-AV
