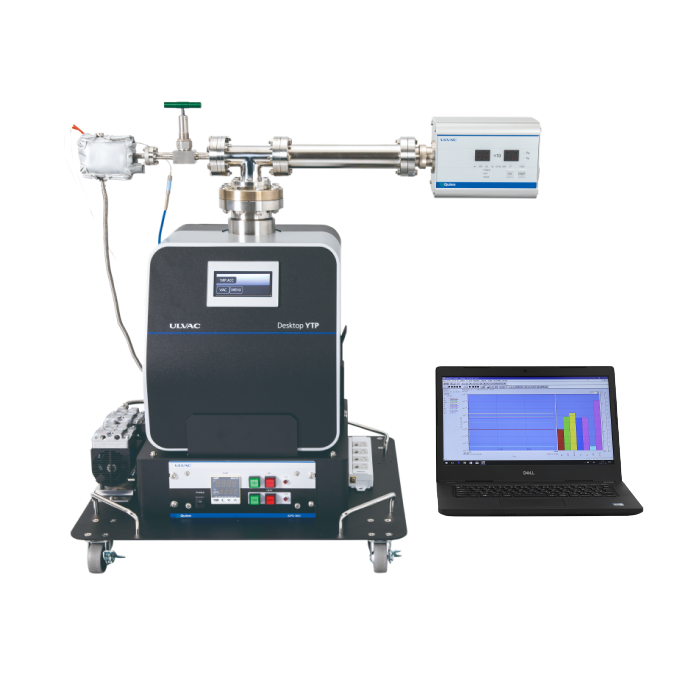

Model: Qulee with YTP-H For Atmospheric Pressure

Model: Qulee with YTP-H For Atmospheric Pressure

Atmospheric Pressure Environmental Process

A variation of Qulee, adding new features in response to customer needs.
By adding a differential pumping unit, the Qulee provides measurement and analysis capabilities for
process management and residual gas analysis.


Features

  • Excellent Cost Performance
    Provides gas analysis with an optional differentialpumping unit
  • Compact Design
    Utilizes standard vacuum unit model desktop YTP
  • Integrated Display Unit Design
    Provides visual data without need for a PC
  • Easy to Operate
    One-click function for easy operation, no complex procedures
  • Atmospheric Pressure Analysis
    Selectable maximum measurable pressures 3000Pa,500Pa,100Pa, 10Pa and 1Pa
    (22.5Torr, 3.75Torr, 0.75Torr, 7.5×10-2Torr and 7.5×10-3Torr/30mbar, 5mbar, 1mbar, 0.1mbar and 1.0×10-2mbar)
  • Select a Model Depending on your Application
    Select from the mass numbers 1 to 100 (BGM2-101/102), 1 to 200(BGM2-201/202), 1 to 300(HGM2-302)
  • Low noise
    43dB(A) or less at Ultimate pressure
  • Pressure indication
    Designed for easy integration of 2 vacuum gauges
  • Complete Leak Test Function
    Helium leak test, air leak test, leak up test
  • Qulee QCS Ver.4 (Ethernet compatible)
    Software included (Windows 8/10/11)

Applications

  • Various types of gas analysis for research and development
  • Gas monitoring of PVD system during processing
    Residual gas analysis in PVD system
  • Residual gas analysis for high vacuum pumping equipment, etc.

Specifications

Qulee main body Select from BGM2-101 / 102 / 201 / 202, HGM2-302
＊Refer to the product catalogue for the specification of Qulee
Software Qulee QCS Ver. 4.2 later (Windows 8/10/11)
Sampling pressure Atmospheric pressure
Atmospheric pressure type (Atmospheric pressure sampling unit)APS-001 Capillary type (100,000Pa type) Dry pump(Sweep) ６L/min, Ultimate pressure/6700Pa
Controller unit Temperature contol and On/Off control of cartridge heater, On/Off control of sweep pump
Capillary tube unit Manual bellows valve (1 line), Cartridge heater, insulation mat, Capillary tube (already mounted), Joint fitting 1/4 ”Swagelok
Power-supply voltage Select for AC100V/220V
Pump unit desktop YTP Desktop YTP
(YTP70A-D)		 Turbo molecular pump 70L/s (N2)
Dry pump(Roughing) 19L/min(Diaphragm pump)
Power-supply voltage AC100-240V
Accessories AC100V power cord(*1), Base stage for DesktopYTP(*2), AC adapter for Qulee, LAN cable(3m) for Qulee, Software installation disc, Bolt set for fixing flange, Gasket (ICF114G,ICF070G), Power strip(*3), Casters(*4), Various fixing screws
Options Ionization gauge package(SH200-1,Sensor head cable 2m, Cross tube, Bolts,Gaskets), USB-LAN adapter, Switching hub(8 ports or 16 ports)(*5),Floor cart(*6)

＊1 Please use power code when using the device in a foreign country or a region where the electrical voltage differs from AC100V. Three power codes are necessary for atomospheric pressure sampling unit, desktop YTP, and AC adapter for Qulee.
＊2 Make sure to use a base stage when installing desktop YTP. For atmospheric pressure type, it has two-stage structure so that a control unit can be attached.
＊3 Power strip only comes with atmosperic pressure/AC100V type.
＊4 Casters only come with atmospheric pressure type. Please attatch casters by yourself.　
＊5 AC adapter is necessary for an optional switching hub.
＊6 Please set up the floor cart by yourself.
