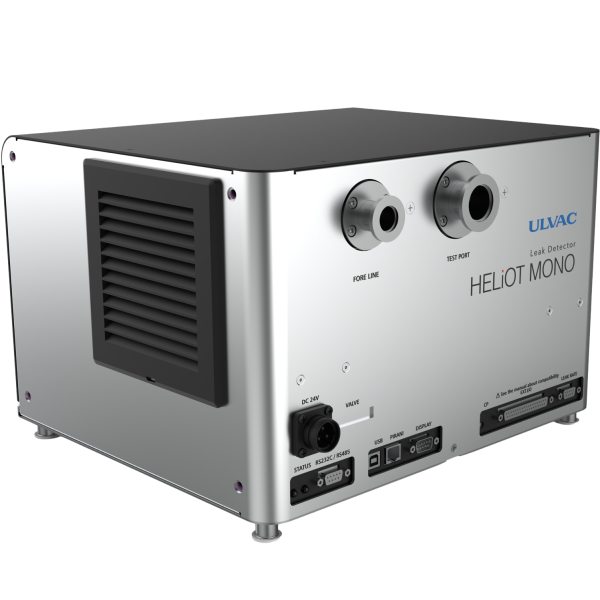

The HELIOT900 is our helium leak detector with; high speed pumping capability, user-friendly operation and guaranteed top performance in all kinds of leak testing situations.


Features

  • Contributes to shorter takt time.
    Short measurement time is achieved with a dedicated exhaust system for leak testing equipment
    with a high exhaust velocity (3.0 L/s) and high measurement pressure (100 Pa).
  • High layoutability contributes to equipment downsizing.
    ・Compact size W360 x H229 x D310, 13 kg, and access surfaces are integrated on one side.
    Vertical or horizontal placement can be selected according to the customer's operating environment.
  • A simple, display-less form is possible.
    The PC is used for various settings and operations, and the display can be eliminated during equipment operation.
  • Easy to use without creating a control program. (Option)
    The basic sequence of valve control that performs the vacuum vessel method is provided, eliminating the need for control from the equipment side.
  • Supports hydrogen gas leakage
    In addition to helium gas, hydrogen gas can also be detected.
  • No copper-based materials are used in the gas-contacting part.
    The gas contacting part is copper-free and can be used in rechargeable battery factories.

Applications

  • Automatic leak test systems: Automotive industry, Air conditioning industry, Refrigeration industry, Food and pharmaceutical for industries packaging and various containers
  • Measurement of helium flow rate and permeation volume

Specifications

Measurement Gas Helium 4He, Hydrogen 2H2
Helium measuring range 0.01x10-10 to 10-4 Pa･m3/s
Hydrogen measuring range 0.01x10-8 to 10-4 Pa･m3/s
Pumping speed@100Pa 3.0 l/s
Measuring pressure 100 Pa or less
Input power supply voltage DC 24V±5% (10A)
External control Input/output I/O (Normally open/normally closed)
Serial interface (RS232C/RS485)
DC0-10V Analog output (leak rate/pressure)
USB (with Windows software "HELIOT monitor")
Compatible with HELIOT700/710/900/ZERO



[Sniffer Method]

Sniffer Method
 AS9 BS9 BT9
Detectable gas 4He
Minimum leak rate display range[Pa・m3/sec] 0.01E-8 - E-5 0.01E-7 - E-3
Flow rate[SLM] <0.03 Approx. 3
Sniffing inlet port Handyprobe Φ6mm tube fitting
Tube[m] 1-10 (*1)



*1 Specified length per 1m.
