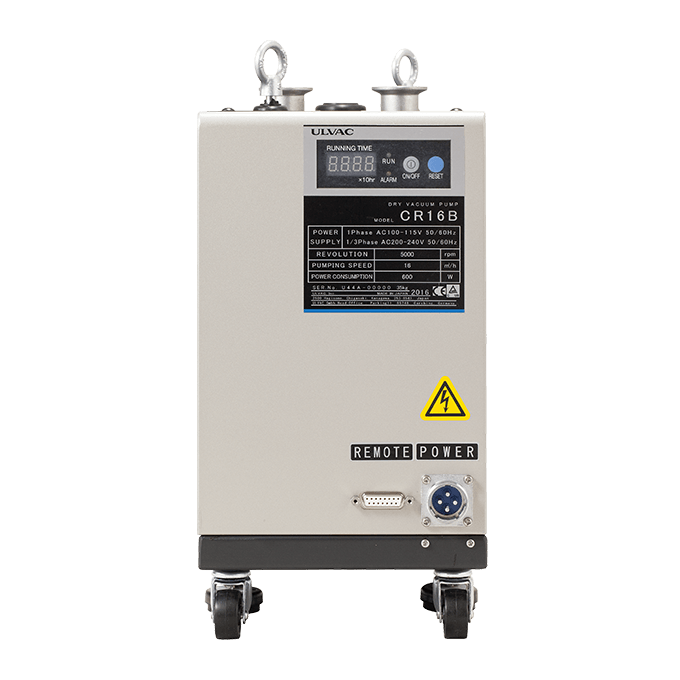

Multi-Stage Roots Type Dry Vacuum Pump

Dry Vacuum Pump "Model:CR" Ver.B is an air-cooled roots type dry vacuum pump. IT complies with international standard(CE,cTUVus).Stable operation and extended lifetime are possible because there is no oil inside of the pump head and no contact between rotor and cylinder.
Features


Features

  • 'Air cooled for low running costs.
  • No requiement for cooling water and nitrogen gas.
  • Low power consumption, air tight and light weight are featured in this pump.
  • Possible to pump down water vapor by use of gas ballast.
  • Applicable standard:CE,cTUVus.

Applications

  • Clean gas vacuum pumping such as air, inert gas.
  • Water vapor pumping for vacuum dryer equipment (gas ballast is required)
  • Vacuum equipment such as sputtering, evaporator, etc
Model   CR16B CR30B CR60B-S CR60B-T CR300B
Max.pumping speed m3/h 16 30 55 300
L/min 280 500 920 5000
Ultimate pressure *1 Pa ≦3.0 ≦0.5
Maximum inlet pressure Atmospheric pressure
Maximum outlet pressure Atmospheric pressure
Power supply *2 Single phase: 100V, 200V
3 phase: 200V		 Single phase:
200V		 3 phase: 200V 3 phase: 200V
Motor rating kW 0.72 1.5 3.0
Inlet port KF25 KF40 KF50
Outlet port KF25 KF40　
Weight kg 35 48 100
Applicable standard CE, cTUVus
Cooling method Air cooling
Gas ballast mechanism *3 Equipped
Maximum water vapor tolerance *4 g/h <300 　　<500
Standard accessory Power Connector,Remote Connector,Instruction Manual,Air filter,Guard

※1：Ultimate pressure is a value without gas ballast gas.
※2：Please specify phase and voltage when ordering.
※3：The valve for gas ballasts is an option.
※4：Maximum water vapor tolerance is a value when gas ballast is used.
Make sure to use a gas ballast mechanism.

Option

Model CR16B CR30B CR60B CR300B
Gas ballast Needle valve 〇 〇 〇 〇
Solenoid valve+Needle valve 〇 〇 〇 〇
Rubber foot 〇 〇 〇 〇



Accessory

Model CR16B CR30B CR60B CR300B
Silencer RS-01＋kit D 〇 〇 - -
RS-01＋kit A - - 〇 -
RS-01＋kit C - - - 〇
Simple silencer *1 EFS-11-NW25/2/2516 〇 〇 - -
EFS-19-NW40/1 *2 - - 〇 〇
Power compatible BOX Ver.A→Ver.B 〇 〇 〇 〇

*1 Element inside needs to be replaced in periodical maintenance.
*2 It is impossible to connect it to ductwork in the facility（Open type）

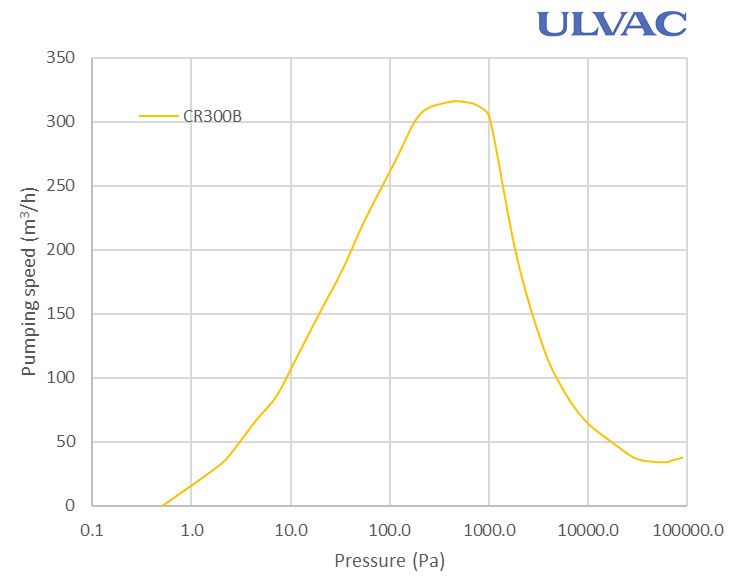

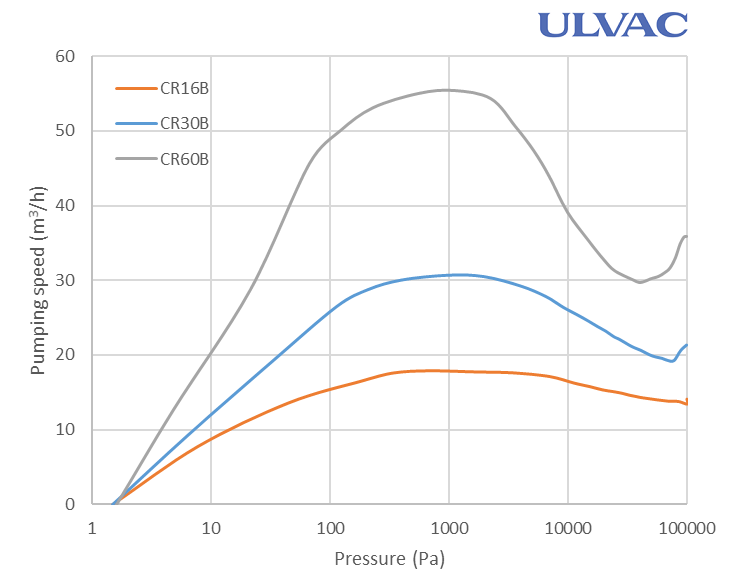

Pumping Speed Curves

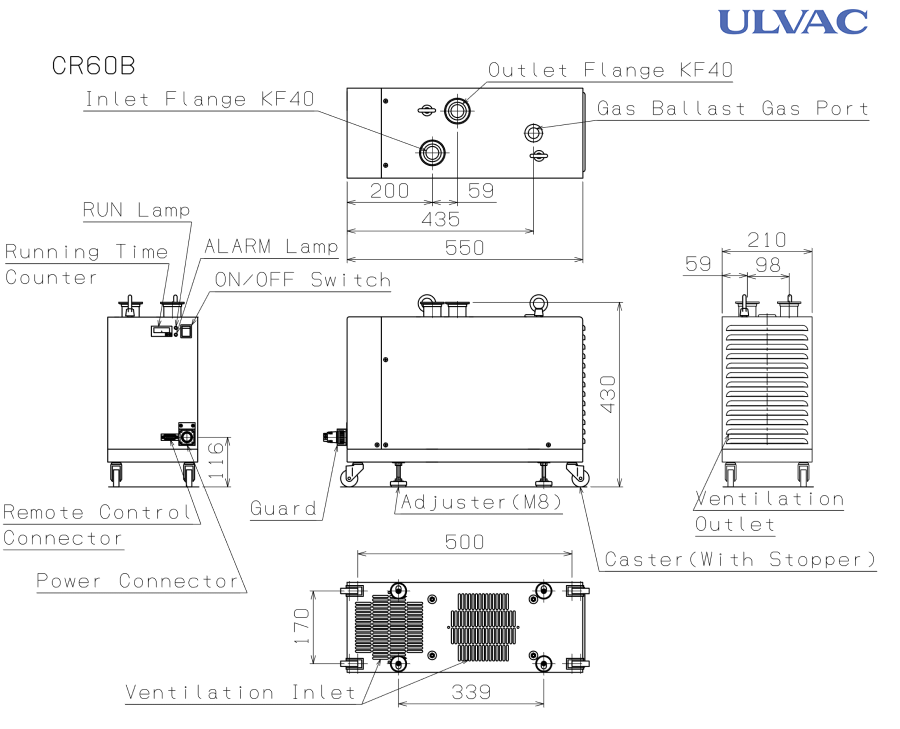

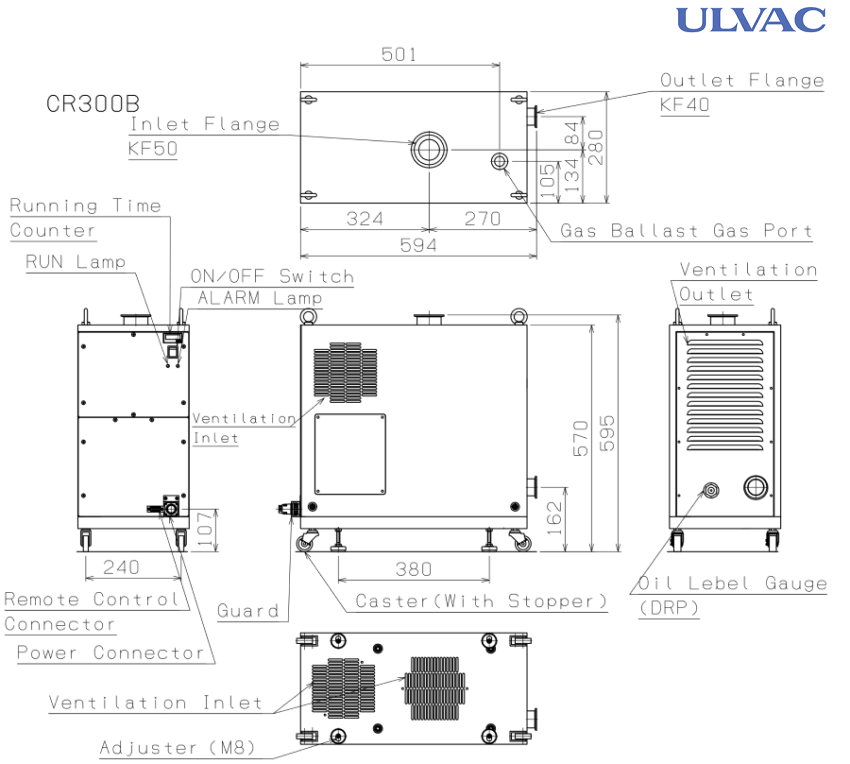

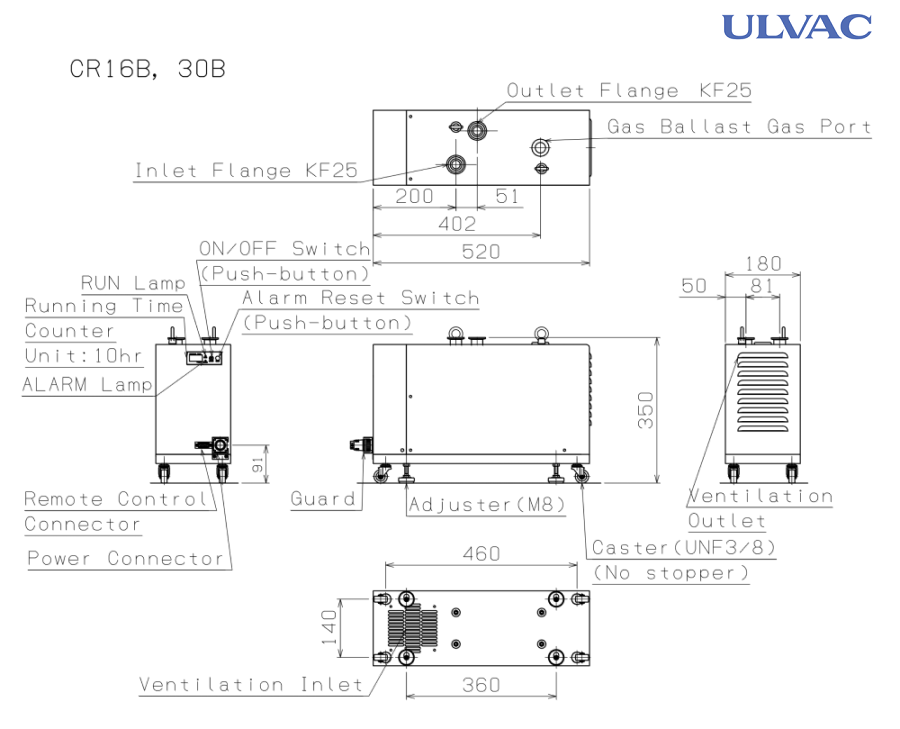

Dimension Drawing
