MODEL: DISL102/DISL-503

MODEL: DISL-102/DISL-503

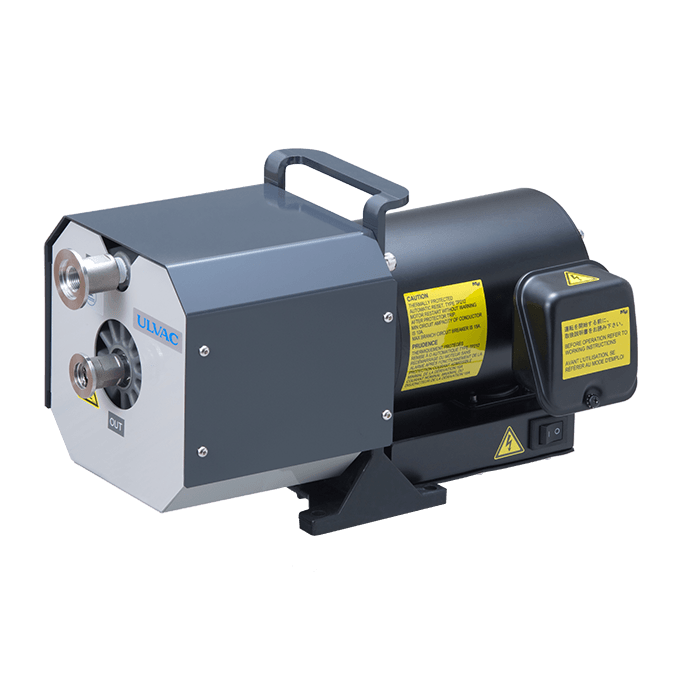

Scroll Type Dry Vacuum Pump

DISL Series is a single-wrap scroll type dry vacuum pump designed for industrial applications requiring clean, oil-free vacuum. Compared with the standard DIS Series, the DISL Series has a more robust structure that provides better resistance to dust and particles, making it suitable for harsher manufacturing environments.

Features

Compact size with large displacement.
The highest level of ultimate pressure for dry vacuum pumps.
Safety design with built-in automatic reset type thermal protector.
Suppresses moisture condensation by air flush.

Applications

Analytical equipment.
Gas recovery system.
Coating equipment.
Back pump for TMP.
Helium leak detector.
Manufacturing process for semiconductor.

Model	Unit	DISL-102		DISL-503
		50Hz	60Hz	50Hz	60Hz
Actual pumping speed	L/min	100	120	433	516
Ultimate pressure	Pa	20		30
Motor^※		Single phase, 100/115/200/230V, 300W, 2P, Capacitor start/run		Three phase, 200/380/400/415V/900W, 2P	Three phase, 200/220/230/460V, 1,100W, 2P
Full load current	A	2.6/1.3/1.4	2.9/2.8/1.6/1.4	3.7/1.88/1.87/1.88	4.1/3.9/3.85/1.92
		（100/200/230V）	（100/115/200/230V）	(200/380/400/415V)	(200/380/400/415V)
Weight	kg	17		34
Inlet flange		KF-25		KF-25（Rc1/2）
Outlet pipe diameter		KF-16		KF-25
Ambient temperature	deg. C	5 - 40
Water vapor handing	g/day	100 (※AF open)		250 (※AF open)

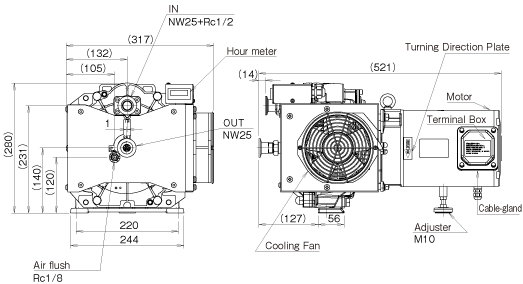

External dimensions	mm	221(W)×380(L)×218(H)		317(W) X 521(L) X 280(H)

※：Power supply plug and Power supply code are not included.
※：AF＝Air flush
The air flush operation not only discharges the water remaining in the pump, but also has the effect of recovering the Ultimate pressure.

Corresponding certificate／Voltage

Model	Applicable standard^※	ＣE Declartion of confirmity	1Φ 100V	1Φ 200V	3Φ 200V	3Φ 400V

DISL-102	cTUV	✓	✓ (Can be switched by changing the terminal plate)		－	－

DISL-503	cTUV	✓	－	－	✓ (Can be switched by changing the terminal plate)

✓：Standard, ○：Option, －：Not Applicable
※cTUV certification: This is a high quality product that complies with Canadian standards, as assessed by an international third party that conducts product safety testing and certification.

Caution

If the pump evacuates the powder or the product, it might be damaged.Please use the inlet filter etc.
Do not evacuate gas which is hazardous to humans or explosive, flammable, or corrosive. If done, it can cause failure by gas, explosion or ignite.
This product has no motor protection function.Be sure to install a protective device such as an earth leakage circuit breaker.
