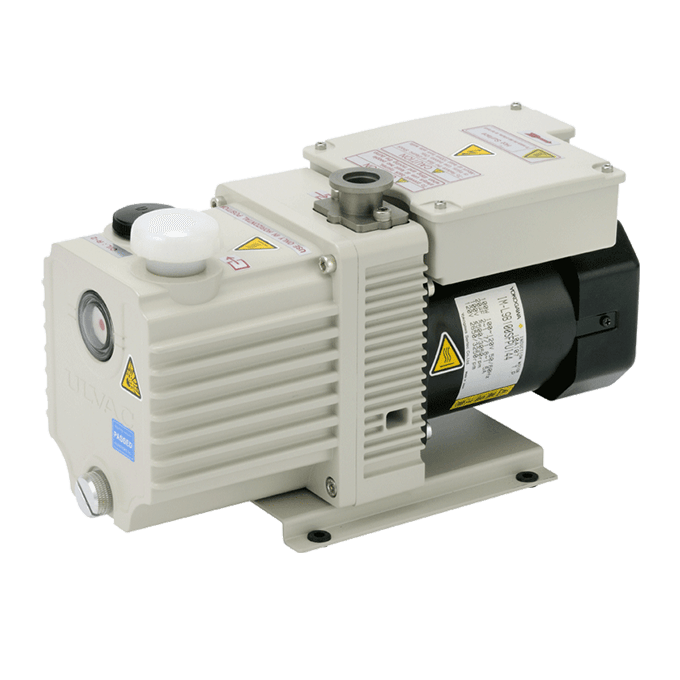

Small Oil Rotary Vacuum Pump

The GHD Series of small vacuum pumps is a family of oil-sealed rotary vane pumps designed for a wide variety of applications including use in analytical and laboratory equipment and as a backing pump for the industry leading HELIOT 900 Helium Leak Detector. The GHD is designed with a magnetically coupled motor to eliminate the problem of shaft seal leakage, and improve the life of the motor. Available in multiple sizes to accommodate the precise needs of your application.


Features

  • Small size but high exhaust speed.
  • Compact size suitable for device integration.
  • The magnet coupling structure eliminates oil leakage from the shaft seal and achieves long life.
  • There is no oil contamination in the vacuum chamber due to the installation of the check valve directly below the intake pipe.
  • Low noise and low vibration.
  • Corresponds to diversification of power cord by power cord inlet and outlet.
  • The exhaust speed is stable due to the installation of the forced oil supply mechanism.
  • Operation from atmospheric pressure is possible.
  • Easy connection with flanged parts and connection by knock pins on internal parts.

Applications

  • Helium leak detector
  • Analytical equipment (GC/MS,ICP/MS,LC/MS)
  • Laboratory experiment

Specifications

Model    GHD-031B  GHD-100D
  Unit  50Hz  60Hz  50Hz  60Hz
Actual pumping speed  L/min  30 36 100 120
Ultimate pressure※  Pa  0.67 G.V. Closed : 0.67 G.V. Open : 6.7
Motor    Single phase, 200 – 240V, 100W, 2P, Capacitor run  Single phase, 220 – 240V
Full load current  A  0.94 (200V)
0.84 (240V)		 1.02 (200V)1.03 (240V)  2.5 2.7
Oil capacity  mL    370   1,000
Recommended oil    R-2
Weight  kg  9.3 22
Inlet port diameter  mm  KF-16  KF-25
Ambient temperature  ℃  7 – 40
Overall dimensions  mm  120(W) × 288.5(L) × 163(H)  150(W) × 413.5(L) × 234.5(H)

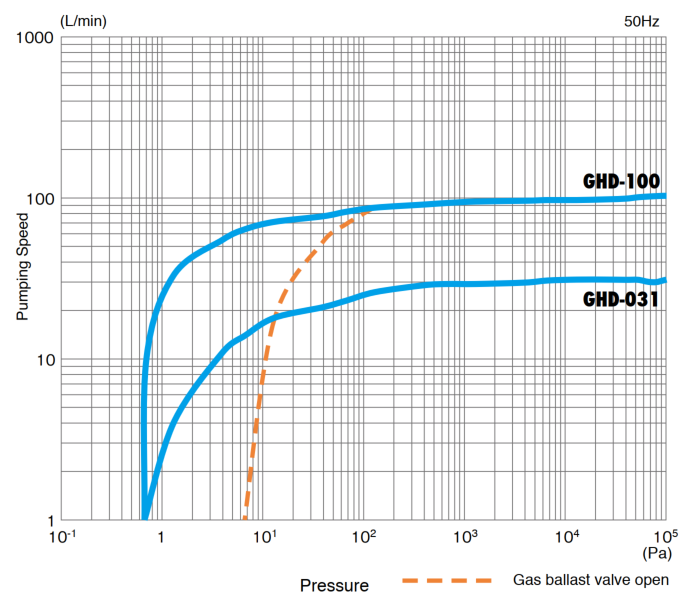

Pumping Speed Curves
