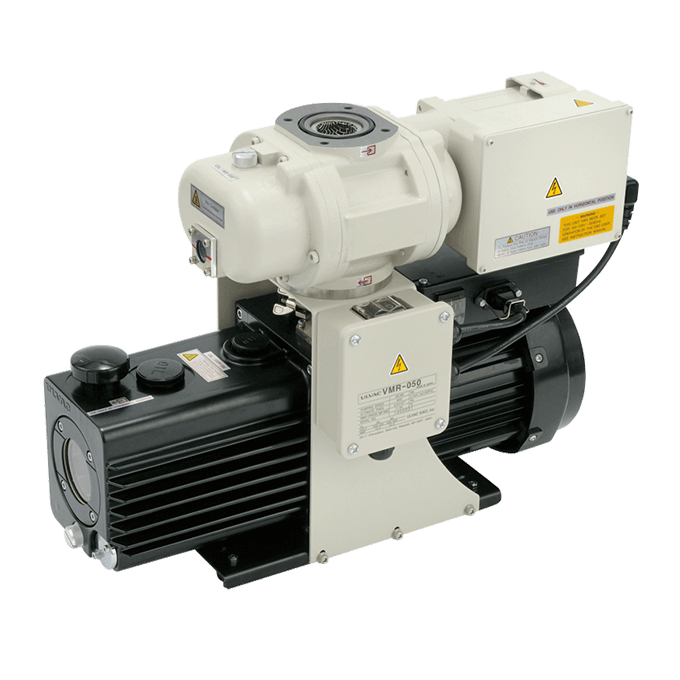

MODEL: VMR-050
Mechanical Booster Pump
It is the small high vacuum pumping system which made a mechanical booster pump, an oil rotary vacuum pump, and piping unify compactly.
Handling and maintenance check are easy and ideal for an experiment.
Product Fillter
MODEL: VMR-050
Features
- It is a pressure domain where the pumping speed of a backing pump decreases, and the steep rise of pumping speed is possible.
An installation space is compact.
By pushing a button, it exhausts at a stretch to ultimate pressure.
Specifications
| Model | VMR-050 | |
| Ultimate pressure | 4.0 X 10-２Pa | |
| Main pump | Mechanical Booster Pump 833 L/min （ at 100Pa ） | |
| Backing pump | Oil Rotary pump 200 L/min | |
| Inlet flange | VG-40 | |
| Weight | 42kg | |
| External dimensions | 100V | 241.4mm(W) X 534.5mm(D) X 399mm(H) |
| 200V | 241.4mm(W) X 534.5mm(D) X 399mm(H) | |
Utility
| Model | VMR-050 |
| Power required | Single phase 100 - 120V／200 - 240V 1.5kVA |
| Ground terminal | D grade （ground resistance/100MΩ or less） |
| Connection | 100V： Vinyl cabtyre cable (with plug) 1.8m |
| 200V：Vinyl cabtyre cable 1.8m |

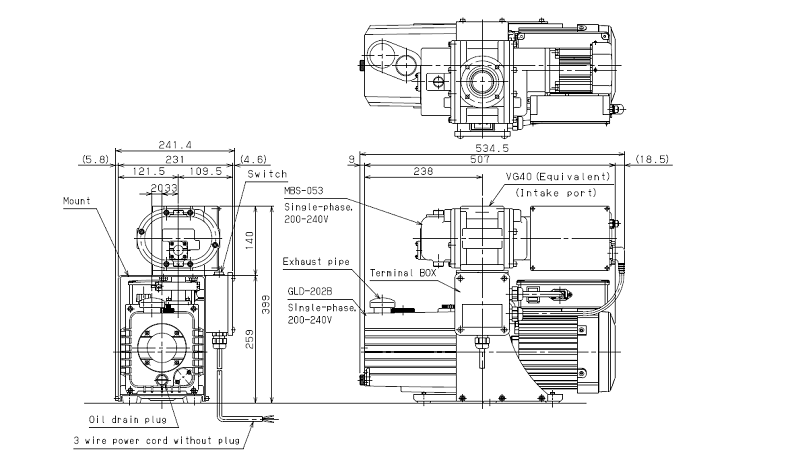

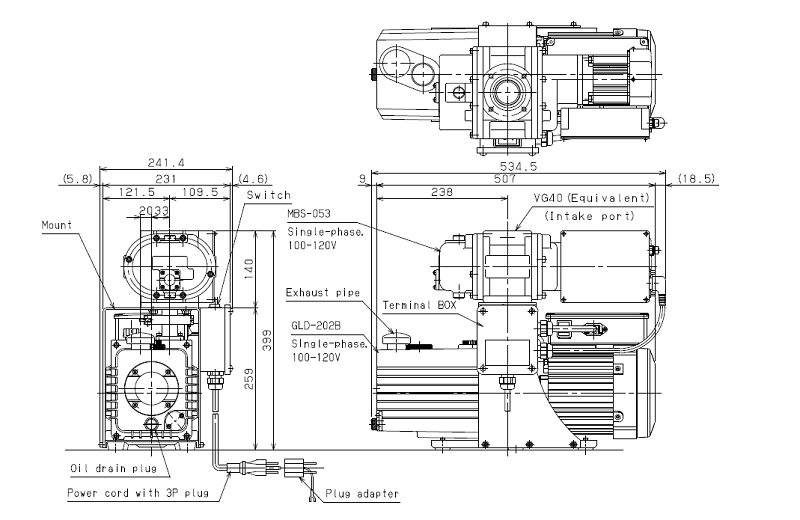

Dimension drawing
